Perimeter LED Display

Name: China Perimeter LED Display Manufacturers Suppliers Factory - Custom Perimeter LED Display - JIUWLDS Technology
Brand: JIUWLDS
SKU: 281052878

Adjustable bracket
3840Hz high refresh rate
6000CD/㎡ high brightness
IP65 waterproof and dust-proof level
-20℃ to 60℃ operating temperature
Openable back cover design for easy maintenance
Soft mask and pillowcase ensure high protection performance

Send Inquiry

Product Introduction

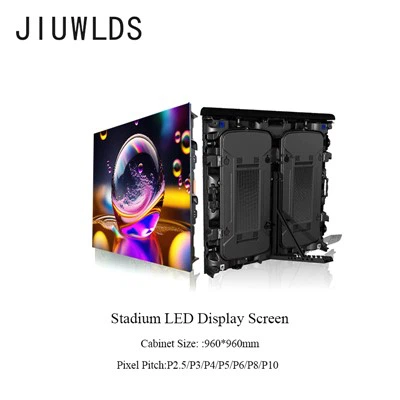

The Perimeter LED Display is a professional solution for football pitches, basketball arenas, tennis courts, and multi-sport venues. With a 960×960mm cabinet and standard 320×160mm panel, it ensures easy assembly, stable operation, and cost-effective maintenance. Pixel pitches such as P6, P8, and P10 are available, and modules can be replaced directly without altering the cabinet structure.

various pixel pitch of Perimeter LED Display001

Product Features

aujustable Perimeter LED Display

The back support structure is designed to resist both front and rear impacts, with flexible angles to match different field requirements.

In sports venues, athletes may occasionally collide with the LED perimeter screens. Both indoor and outdoor stadium LED displays are built with impact-resistant structures to help prevent injuries and protect the equipment.

anjustable angle of Perimeter LED Display

The football stadium screens also feature a IP65 waterproof rating, V0 flame-retardant wiring, and efficient heat dissipation guarantee stable operation in all-weather conditions.

The perimeter LED display is designed with pillowcases and soft rubber, which not only effectively ensures the safety of the LED display but also protects athletes and spectators from potential injuries. Without a doubt, it is the good choice for any sports venue.

Our stadium perimeter LED screen features an openable back cover for quick access during routine maintenance and accessory replacement, helping save time and labor costs. The fans provide efficient heat dissipation to support stable, long-term operation.

inside structure of Perimeter LED Display

Our outdoor led modules can achieve infinite splicing, smooth visual.It Supports large-scale assembly into 2K, 4K, or 8K video walls with HDR technology, delivering smooth visuals and vivid color reproduction.

control system of Perimeter LED Display

Product Application

Football Stadiums: Perimeter LED Display deliver sponsor ads, team promotions, and live updates around the pitch.

Basketball Arenas: Displays used for replays, game statistics, and branding inside indoor courts.

Tennis Matches: Scoreboards provide real-time scoring, serve speeds, and player highlights.

Racing Tracks:Large LED walls show lap times, race positions, and live footage of overtakes or accidents.

Multi-Sport Venues:Suitable for rugby, baseball, and athletics to combine live coverage with sponsor exposure.

applications of Perimeter LED Display

Product Specification

Pixel Pitch	6mm	8mm	10mm
Lamp	SMD3535	SMD3535	SMD3535
Driving mode(scan)	1/8Scanning	1/5Scanning	1/4Scanning
Brightness(nit)	5500cd/m²	5000cd/m²	4500cd/M2
Cabinet size(mm)	960×960	960×960	960×960
Best viewing angle	Horizontal>170 Vertical>120	Horizontal>170 Vertical>120	Horizontal>170 Vertical>120
Working temperature	-20-60℃	-20-60℃	-20-60℃
Panel power supply	5V40A	5V40A	5V40A
AC input Power Maximum Value(W/m²)	1000W/m²	1000W/m²	800W/m²
AC input Power Typical Value(W/m²)	350W/m²	300W/m²	200W/m²

Why choose us

Advanced Manufacturing – Equipped with Yamaha, Samsung, and Panasonic production lines, ensuring stable quality and fast lead times.

Large-Scale Capacity – Over 30,000 sqm monthly production allows delivery within 1–10 working days.

Certified Quality – ROHS, FCC, and CE certifications guarantee compliance with international standards.

Flexible Packaging & Shipping – Honeycomb cases, plywood crates, and flight cases available. Multiple transport solutions by sea, air, or express ensure safe delivery.

Custom Solutions – We provide tailored designs, professional installation guidance, and long-term technical support.

certification of Perimeter LED Display

Factory of Perimeter LED Display

customer service of Perimeter LED Display

one-stop after-sale service of led display screen

FAQ

Q: What is the typical viewing distance for stadium perimeter LED displays?

A: Depending on the pixel pitch, the best viewing distance is usually between 5 to 60 meters. P6 is recommended for closer viewing, while P10 is suitable for larger stadiums with long-distance spectators.

Q: How long does it take to install a perimeter LED display?

A: With quick-lock systems and positioning pins, installation is straightforward. A professional team can assemble and connect the cabinets in a relatively short time, depending on the total screen size.

Q: Does the supplier provide after-sales service and technical support?

A: Yes. JIUWLDS offers global after-sales support, including installation guidance, troubleshooting, and 24/7 online assistance. Replacement parts and technical solutions are provided to ensure long-term reliability.
