P1.53 Micro LED Pixel Pitch
640*480
Tailor-made
High CP value
Customized design
P1.25/P1.53/P1.86/P2.5
Product Introduction

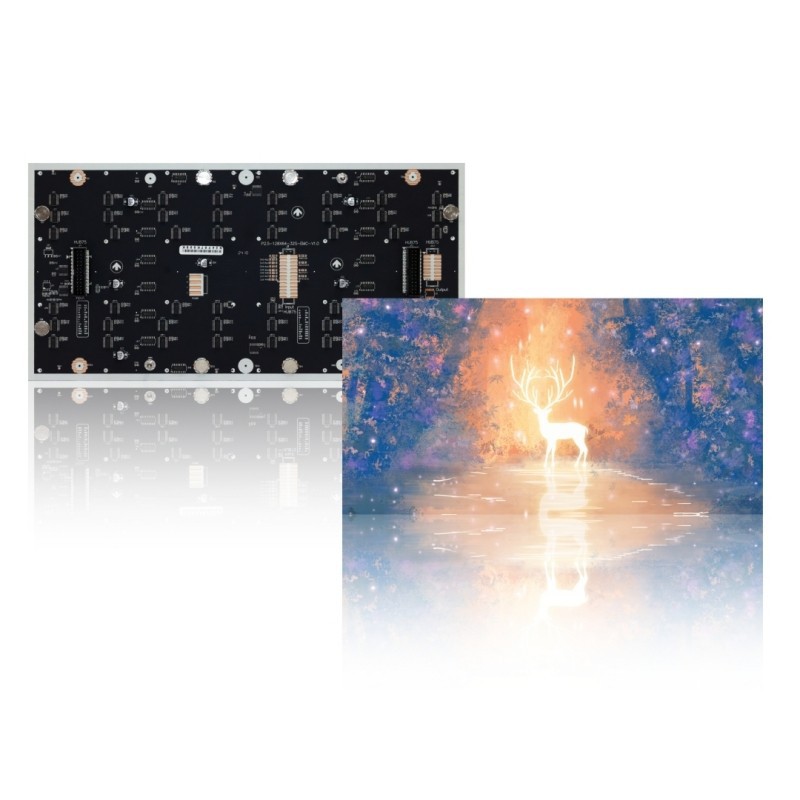

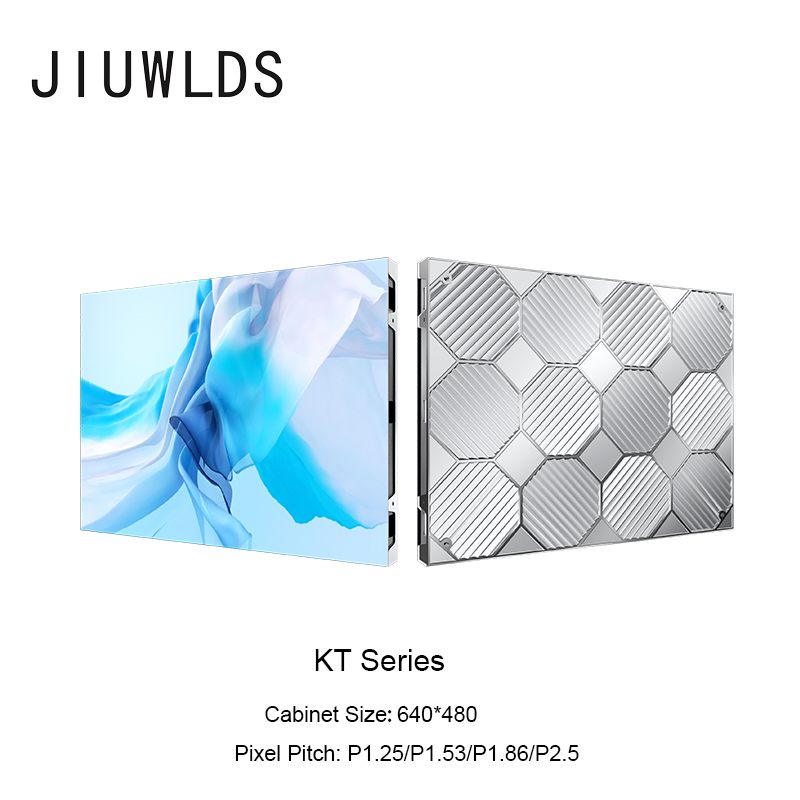

Our KT series is designed with the frame of honeycomb and is enable to keep firm in structure when under stress, and its disaaipation has good peformance. P1.53 Micro LED Pixel Pitch KT series, supported customerzation, is tailor-made for specific demands in sizes, currently supports only seperated connection aof power and signal ports.
Featured with Magenetic modules, our fine pixel pitch series support front maintenance can achieve quickly remove and replace modules from the front. Modules can be detached easily with a simple magnetic tool, improving maintenance efficiency and reducinng the labor cost.
Compared to traditional cable-based wiring, our HUB board design offers a cleaner, more efficient, and more reliable solution and brings the hassel-free installation.
Vedio
Product Specification
|
Items |
KT1.25 |
KT1.53 |
KT1.86 |
KT2.5 |
|
Cabinet Dimension (mm) |
640*480*49 |
|||
|
Resolution (dots) |
512*384 |
416*312 |
344*258 |
256*192 |
|
Scan (s) |
1/64 |
1/52 |
1/43 |
1/32 |
|
Visible Angle |
H / V ≤140° |
|||
|
Cabinet Weight (kg) |
7.5 |
|||
|
Brightness (cd) |
800 |
|||
|
Gray Scale (bit) |
≥13 |
|||
|
Color Temperature |
6500K～8500K |
|||
|
Contrast Ratio |
≥4000:1 |
|||
|
Refresh Rate (hz) |
≥3840 |
|||
|
Operating Ambient Temperature |
-10℃～60℃ |
|||
|
Operating Ambient Humidity |
35％～75％RH |
|||
|
Peak Power |
≤150 W/PCS |
≤90 W/PCS |
≤85 W/PCS |
≤72 W/PCS |
|
Average Power |
50-80 W/PCS |
30-45 W/PCS |
25-40 W/PCS |
20-35 W/PCS |
Application

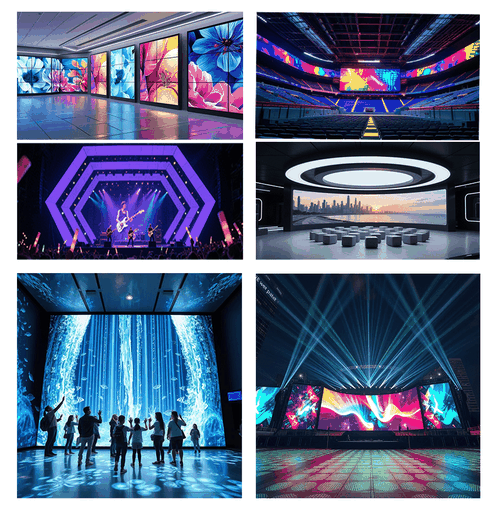

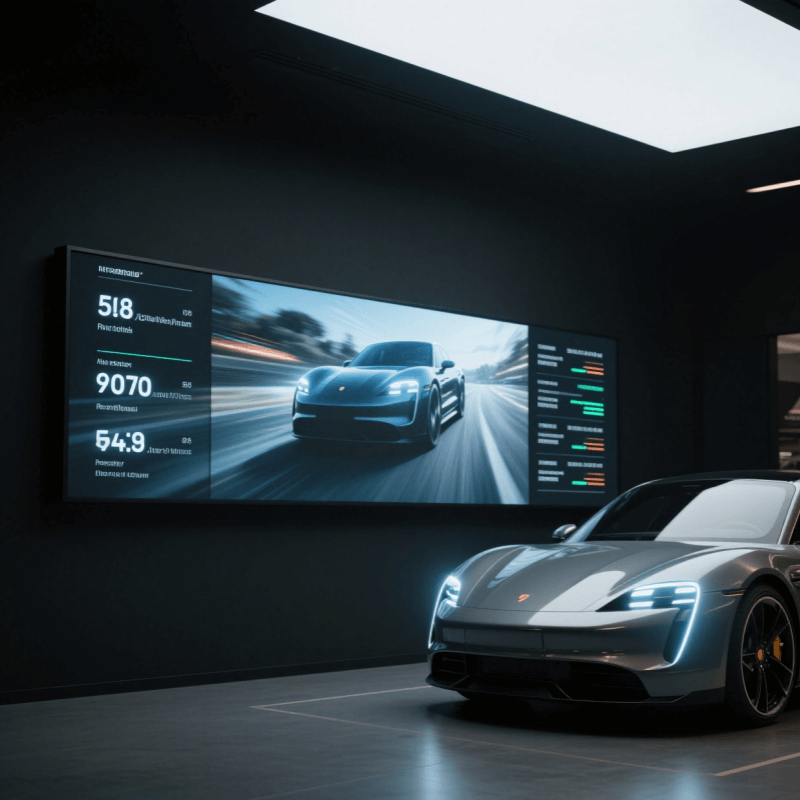

Our P1.53 Micro LED Pixel Pitch, indoor LED modules are widely used in various applications, including control rooms, conference rooms, retail stores, broadcast studios, exhibition halls, corporate lobbies, and educational institutions.
Our LED Panels provide high-resolution, seamless, and reliable visual solutions for both commercial and professional environments. You can tell us your idea and we will make it happen.
Certification
JIUWLDS complies with ROHS, FCC, and CE certifications etc, reflecting our commitment to international quality standards.
Our Advantages
(1) JIUWLDS is equipped with nationally advanced and sophisticated production equipment: automatic printing machine, high-speed placement machine, 12-temperature zone reflow soldering, and AOI automatic testing equipment,etc. All equipments cover Yamaha, Samsung, Panasonic and other international first-line brands.
(2) Our Monthly Production Capacity is more than 30000 SQM which allowes us to achieve the fast delivery:1-10 weekdays. JIUWLDS'strong production capacity enables JIUWLDS to meet customer needs in a short time and seize the market opportunities.
FAQ
Q: What kind of payment does your company support?
A: T/T, 100% L/C at sight, Paypal, Western Union are all accepted if you have other payment,please fell free to contact.
Q: Can I visit your factory?
A: Sure,welcome to you visit our factory at any time.
Q: If have quality problems, how do you solve them?
A: Please provide relevant videos and photos after receipt of the shipment. We will verify it at first. If it is really quality problem, we will work with the engineer to assist you in solving the problem.
Q: Can the indoor LED wall be customized in size and shape?
A: Yes. The modular cabinet design allows flexible assembly into different screen sizes and aspect ratios to meet unique installation requirements.
