P10 LED Display Board
Pixel Pitch:10mm
Module size: 320mm x 160mm
Brightness: ≥5000 cd/m²
Refresh rate: ≥3840Hz
Grayscale: 16 bit
Product Introduction
There are two types of P10 LED displays: direct insert(DIP) LED and SMD LED.
DIP: Plugging in the LED directly provides higher brightness, making it suitable for direct sunlight.
SMD LEDs provide wider viewing angles and better color consistency.
Cabinet options include cost-effective but heavier iron cabinets, as well as aluminum-magnesium alloy cabinets, which are lighter and more durable for high-end applications.
Product Specification
P10 Outdoor Full Color Display SMD3535(1R1G1B)
|
Item |
Technical parameter |
|
|
Module |
Dimension |
(W)320mm*160mm(H) |
|
Pixel pitch |
10mm |
|
|
Pixel Density |
10000/ M2 |
|
|
Pixel configuration |
1R1G1B |
|
|
LED specification |
SMD3535 |
|
|
Pixel resolution |
(W)32*16(H) |
|
|
Average power |
16W |
|
|
Panel current |
8A |
|
|
Panel weight |
0.44KG |
|
|
Cabinet&Bracket |
Humidity |
10%-95%RH |
|
Number of unit boards per square meter |
19.5PCS |
|
|
Hub connecting |
HUB75 |
|
|
Best viewing angle |
Horizontal >170 Vertical>120 |
|
|
Best viewing distance |
5-100M |
|
|
Working temperature |
-20-+60 |
|
|
Panel power supply |
5V40A |
|
|
Screen power supply |
220VAC/50HZ+_ 10% |
|
|
Max power |
<1000W/m² |
|
|
Average power |
300W |
|
|
power quantity |
200W/4PCS |
|
|
Technical parameter |
Driving device |
16208Constant current drive |
|
Drive type |
1/2Scanning |
|
|
Refresh frequency |
3840HZ/S |
|
|
Display color |
4096*4096*4096 |
|
|
Brightness |
6000cd/M2 |
|
|
Life span |
100000Hours |
|
|
Communication distance |
<100M |
|
Product Features
JIUWLDS outdoor LED displays adopt PWM driver chips, enhancing both the refresh rate and visual smoothness without compromising grayscale accuracy.
The mask is made from PC + fiberglass, featuring a black coated surface and a serrated edge design. This ensures excellent durability and delivers high contrast for sharper image quality.
- Constant Current Driver IC
Our outdoor LED Module is equipped with a high-consistency constant current driver IC to ensure stable and uniform images. It supports high refresh rate, high grey scale and excellent colour consistency to provide smooth and vivid visual effects in outdoor environments.
- Durable PCBs
Features thick, high-quality PCBs with wave soldering and an oxygen barrier to protect against moisture and oxidation. Reliable performance over a wide temperature range of -40°C to 65°C for harsh outdoor conditions.
- Power cord connectors
Outdoor Panels are designed for quick and secure connection to the power supply. Ensures stable power supply, reduces installation time and increases operational safety.
SMD and DIP
|
Feature |
SMD Outdoor LED Display |
DIP Outdoor LED Display |
|
LED Type |
Surface-Mount Diode (SMD) |
Dual In-Line Package (DIP) |
|
Brightness |
Moderate brightness, suitable for most outdoor conditions |
Very high brightness, clearly visible under direct sunlight |
|
Color Performance |
Excellent color reproduction and blending |
Good color accuracy but less uniform blending |
|
Pixel Density |
High pixel density, supports high-definition display |
Lower pixel density, suitable for long-distance viewing |
|
Viewing Angle |
Wide viewing angle |
Narrower compared to SMD |
|
Weather Resistance |
IP65 waterproof and dustproof (depending on product) |
Strong resistance to wind, rain, and harsh environments |
|

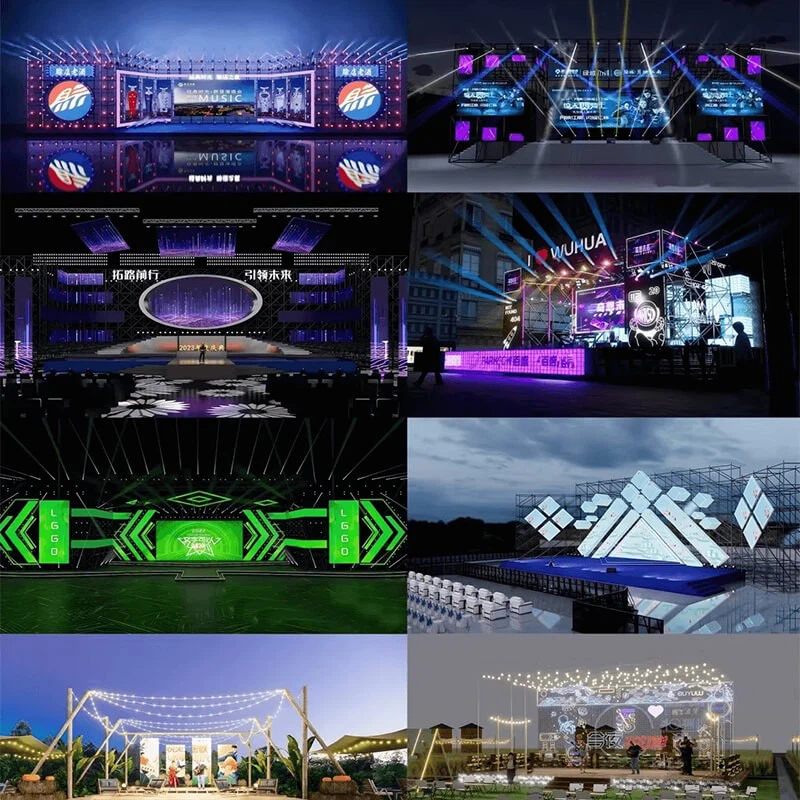

Application Scenarios |
Stadiums, billboards, stage visuals, smart devices |
Stadiums, outdoor squares, highways, large outdoor ads |
|
Power Efficiency |
Energy-saving and eco-friendly |
Typically consumes more power |
|
Durability & Lifespan |
Good durability |
Very long lifespan and low maintenance |
|
Cost |
Usually higher due to complex design and materials |
Lower cost in large-size applications |
Installation
Our LED display screens support a variety of installation methods to meet different needs:
- Hanging – Suitable for ceilings or open spaces
- Embedded – Flush with the wall for a clean look
- Double Column – Stable support for large indoor displays
- Wall Mounted – Space-saving and widely used
- Single Column – Compact and ideal for smaller spaces
- Floor-standing – Flexible placement, easy to move
- These various options make installation easy and adaptable for various environments.
Our Advantages
Our Monthly Production Capacity is more than 30000 SQM which allowes us to achieve the fast delivery:1-10 weekdays. JIUWLDS'strong production capacity enables JIUWLDS to meet customer needs in a short time and seize the market opportunities.
JIUWLDS provides complete and customized LED display solutions.Based on your application scenario, we recommend the most suitable products for you and design appropriate installation methods according to the site size and conditions. During production, we implement strict quality control at every stages-from raw materials to final products. After shipping, we track logistics in real time and keep you updated.If you encounter any questions , please feel free to contact us. We are pleased to help you. JIUWLDS offers 24/7 online support, and our technicians are ready to assist you at any time.
